金屬化聚丙烯薄膜電容器（小型盒式）

產品特性產品規格產品認證

MEB(CL23X) Metallized Polyester Film Capacitor (Mini-BOX)

金屬化聚酯薄膜電容器（小型盒式）

★ FEATURE	特點：
Small size	體積小
Low loss and good stability	損耗小，穩定性好
Long life due to excellent self-healing	自愈性好，壽命長
★APPLICATION	用途：
Widely used in couping,filter,noise-suppression bypass of DC and pulse circuits in all kinds of machines	適用于投資類和消費領域整機的耦合、濾波、降噪、旁路等直流和脈沖電路等
★SPECIFICATIONS技術要求：

DIELECTRIC

介質

Polyester film

聚酯薄膜

ELECTRODES

電極

Vacuum evaporated metal

真空蒸鍍金屬

COATING

包封

Encapsulated in reinforced flame retardant plastic case sealed with epoxy resin meeting the requirement of UL 94V-0，

UL94V-0盒子并用環氧樹脂封裝

LEADS

導線

Radial leads of tinned wire

徑向鍍錫導線

REFERENCE STANDARD

引用標準

GB7322；IEC60384—2

CLIMATIC CATALOGUE

氣候類別

40/85/21 (From 85℃ up to 105℃ with derating voltage 1.25%/℃)

(85℃至105℃間按1.25%/℃遞減電壓)

CAPACITANCE VERSUS

RATED VOLTAGE(U_R)

靜電容量與額定電壓

0.0010μF-1.0μF/50VDC、63VDC

0.0010μF-0.68μF/100VDC

0.0010μF-0.15μF/250VDC

CAPACITANCE TOLERANCE

靜電容量誤差

M=±20% K=±10% J=±5%

DISSIPATION FACTOR

（TANGENT OF LOSS）

散逸因素（損耗角正切）

≤1.0% （at 20℃,1KHz）

VOLTAGE PROOF

耐電壓

1.6*UR Unit:VDC (5s at 20℃)

INSULATION RESISTANCE

絕緣電阻

C≤0.33μF, IR≥5000MΩ; C＞0.33μF, IR*C≥3000S

UR≤100V Testing by 50 V; UR＞100V Testing by 100 V

（1minute at 20℃ and RH≤65%）

ENDURANCE

耐久性

1000 hours with 125% of rated voltage at 85℃.After the test:

85℃條件下，125%之額定電壓1000小時。試驗完成后：

△C/C≤5%；△DF≤0.20%

C≤0.1μF，IR≥9000MΩ C＞1μF

IR≥50% of the specified value （標稱值）. （20℃ 1KHz）

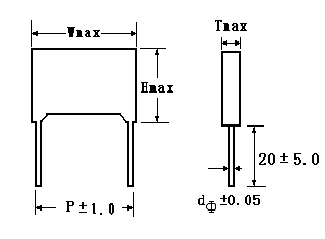

OUTLINE DRAWING 外觀圖 ★ PICTURE 實物圖、

★DIMENSIONS 尺寸 UNIT單位:mm

capacitance		50/63VDC					100VDC					250VDC
symbol	uF	W	H	T	P	dφ	W	H	T	P	dφ	W	H	T	P	dφ
102	0.0010	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
122	0.0012	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
152	0.0015	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
182	0.0018	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
222	0.0022	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
272	0.0027	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
332	0.0033	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
392	0.0039	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
472	0.0047	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
562	0.0056	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
682	0.0068	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
822	0.0082	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
103	0.010	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
123	0.012	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
153	0.015	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
183	0.018	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5
223	0.022	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	7.5	3.5	5.0	0.5
273	0.027	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	7.5	3.5	5.0	0.5

333	0.033	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	7.5	3.5	5.0	0.5
393	0.039	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	7.5	3.5	5.0	0.5
473	0.047	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	9.5	4.5	5.0	0.6
563	0.056	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	9.5	4.5	5.0	0.6
683	0.068	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	9.5	4.5	5.0	0.6
823	0.082	7.2	6.5	2.5	5.0	0.5	7.2	6.5	2.5	5.0	0.5	7.2	10.0	5.0	5.0	0.6
104	0.10	7.2	6.5	2.5	5.0	0.5	7.2	7.5	3.5	5.0	0.5	7.2	10.0	5.0	5.0	0.6
124	0.12	7.2	6.5	2.5	5.0	0.5	7.2	9.5	4.5	5.0	0.6	7.2	11.0	6.0	5.0	0.6
154	0.15	7.2	7.5	3.5	5.0	0.5	7.2	9.5	4.5	5.0	0.6	7.2	11.0	6.0	5.0	0.6
184	0.18	7.2	7.5	3.5	5.0	0.5	7.2	9.5	4.5	5.0	0.6
224	0.22	7.2	7.5	3.5	5.0	0.5	7.2	10.0	5.0	5.0	0.6
274	0.27	7.2	9.5	4.5	5.0	0.6	7.2	10.0	5.0	5.0	0.6
334	0.33	7.2	9.5	4.5	5.0	0.6	7.2	11.0	6.0	5.0	0.6
394	0.39	7.2	9.5	4.5	5.0	0.6	7.2	11.0	6.0	5.0	0.6
474	0.47	7.2	10.0	5.0	5.0	0.6	7.2	11.0	6.0	5.0	0.6
564	0.56	7.2	10.0	5.0	5.0	0.6	7.2	11.0	6.0	5.0	0.6
684	0.68	7.2	11.0	6.0	5.0	0.6	7.2	11.0	6.0	5.0	0.6
824	0.82	7.2	11.0	6.0	5.0	0.6
105	1.0	7.2	11.0	6.0	5.0	0.6

SPECIAL SIZE OR ITEMS ON REQUEST)可依需求制作特殊規格

MEB規格書 點擊下載
